  1. TempMaster® | Commercial Equipment
  2. Packaged Rooftop Units
  3. TempMaster® Omni™ Select Rooftop Units
27550TSELECTAC Product Image
  • 27550TSELECTAC Thumb Image

TempMaster® Omni™ Select Rooftop Units

27.5-50 Tons

TempMaster® Omni™ Select Rooftop Units provide class-leading performance without compromise, all in a cost-effective package.

  • Surpasses DOE 2018 guidelines by up to 39% and exceeds DOE 2023 part-load standards by as much as 22%
  • Up to 11.1 EER/13.3-16.0 IEER
  • Multiple airflow strategies
Back to Top

TempMaster® Omni™ Select Rooftop Units

  • Overview
  • Features
  • Benefits
  • Product Literature

    Industry-leading Efficiency

    TempMaster® Omni™ Select Rooftop Units provide class-leading performance to deliver comfort without compromise, all in a cost-effective package. With up to 31% greater part-load efficiency (IEER) than similar, competitive models, and even higher efficiency levels in our 4-stage IntelliSpeed™ models, energy costs are reduced to industry-leading levels.
    Industry-leading Efficiency

    Features

    • Equivalent or higher part-load efficiency (IEER) than comparable models from competitors
    • Smart Equipment enabled
    • Seamless integration with Verasys building controls systems
    • Stainless steel heat exchangers
    • Modulating hot gas reheat (HGRH)
    • Low ambient control
    • A broad range of outdoor air options, including low-leak damper economizers, constant-volume powered exhaust and modulating powered exhaust
    • Multiple airflow strategies, including 2-stage constant-volume (CV), 2-stage with IntelliSpeed™ fan control, 4-stage variable-air volume (VAV) and 4-stage with IntelliSpeed™ fan control
    • Continuous reset single zone (CRSZ) control
    • 65 kA high short circuit current (SCCR) electrical rating
    • E-coat coil coating
    • Multiple heating options, including staged gas heat, modulating gas heat and electric heat

    Benefits

    Reduced Operating Costs And Code Compliance
    REDUCED OPERATING COSTS AND CODE COMPLIANCE

    Efficient performance exceeds DOE 2018 guidelines by up to 39% and surpasses DOE 2023 part-load standards by almost 22%.

    Extraordinary Flexibility
    EXTRAORDINARY FLEXIBILITY

    TempMaster® Omni™ Select Rooftop Units share the same footprint as the majority of similar tonnage-range units installed in the field.

    Ease Of Service
    EASE OF SERVICE

    Easy access to all serviceable items in the unit provide reduced maintenance overhead.

    Designed For Quality
    DESIGNED FOR QUALITY

    Optimized with proprietary advances in modeling technology and extensively field-tested, Select units offer consistent quality.

    Verasys Controls

    TempMaster® Omni™ Select Rooftop Units are Verasys enabled, making it easy to improve comfort, efficiency and operating costs. Verasys offers remote connectivity for secure access anytime, anywhere. BACNet®-based, it connects seamlessly to Smart Equipment throughout your facility via wireless compatibility.

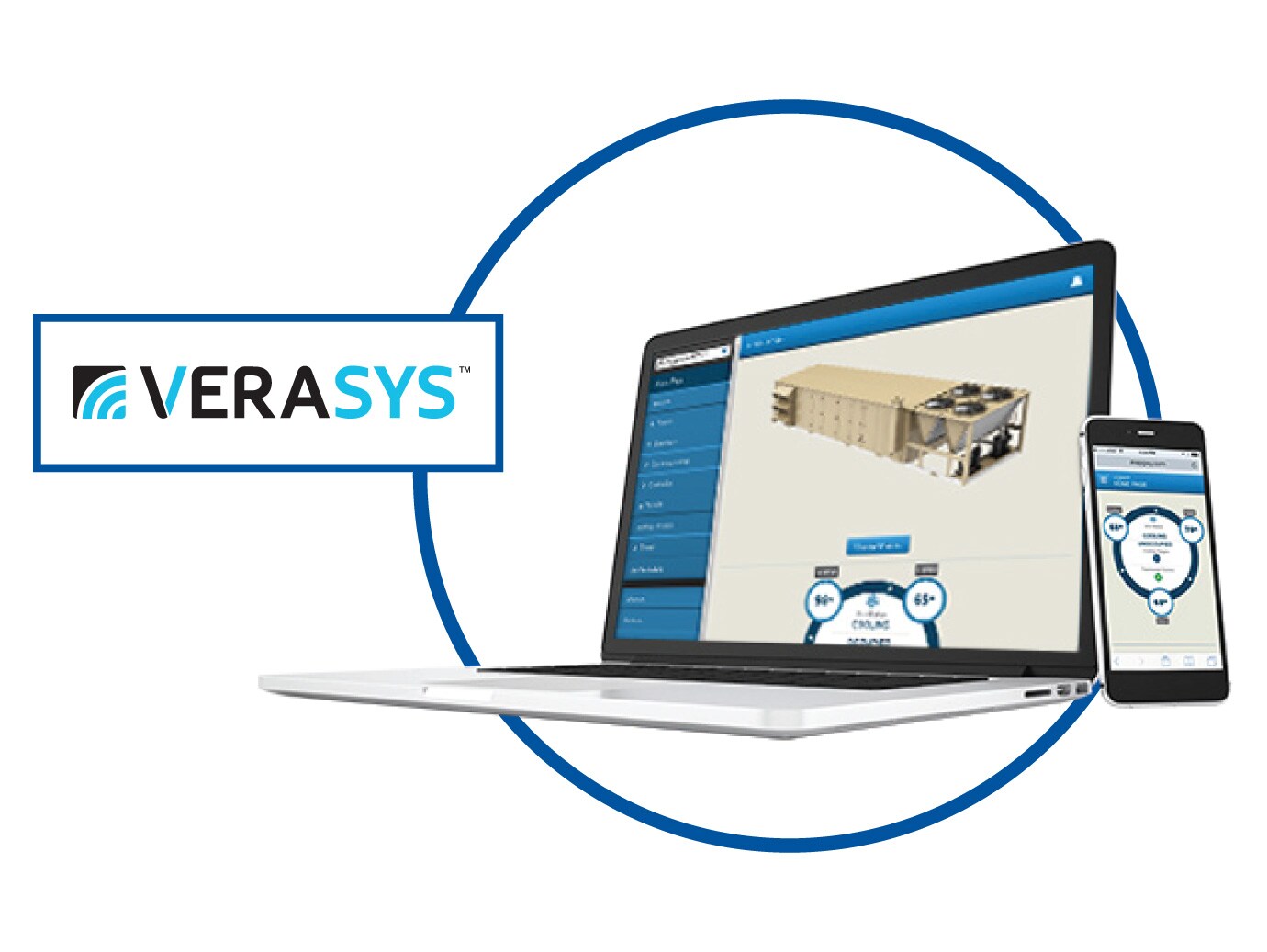

    Verasys controls showing the configuration and performance of a building's YORK packaged rooftop unit.

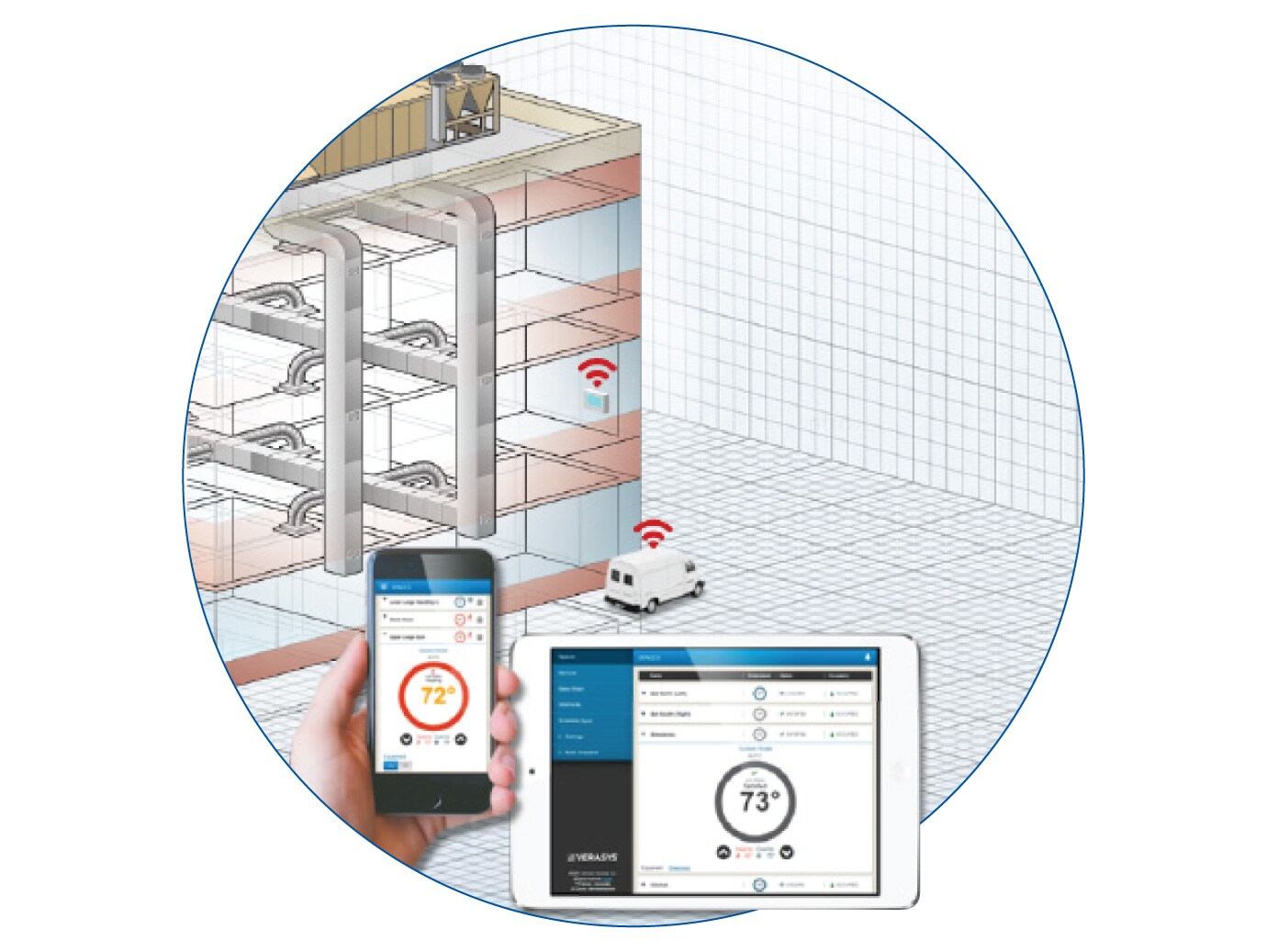

    A Mobile Access Portal (MAP) gateway providing access to a YORK packaged rooftop unit via a smart device.

    Mobile Access Portal (Map)

    The optional MAP gateway with Wi-Fi® hotspot provides access to commissioning, configuration and maintenance logs using a smart device for fewer trips to the jobsite or roof to diagnose issues.

    Technical Resources

    Document Name
    Description
    Language
    Resource Type

    Technical Guide

    5759102-ttg-c-1220 (English)

    TempMaster® Omni™ Select TV28 to TV50 and TH28 to TH50

    English Technical Guide
    VIEW

    Installation Guide

    5759069-tim-b-0421 (English)

    TempMaster® Omni™ Select Installation Guide-Horizontal Airflow

    English Installation Guide
    VIEW

    Installation Guide

    5759093-tim-d-0421 (English)

    TempMaster® Omni™ Select Installation Guide-Vertical Airflow

    English Installation Guide
    VIEW

    Brochure

    tempmaster-omni-select-flyer-lr (English)

    TempMaster® Omni™ Select Brochure

    English Brochure
    VIEW
    No resource found for selected filter

    Back

    Next
